J -Trim J-Cap For Forbo Cork

 * Back To *

Home

Back to Extrusions

also see
Back to Seaming Methods

Forbo Cork is a nominal 1/4" but is usually between .230" and .245" thick

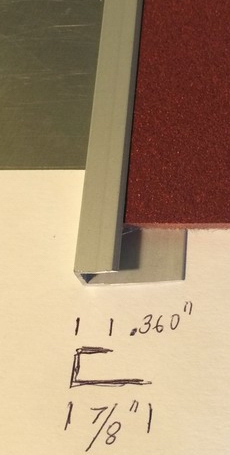

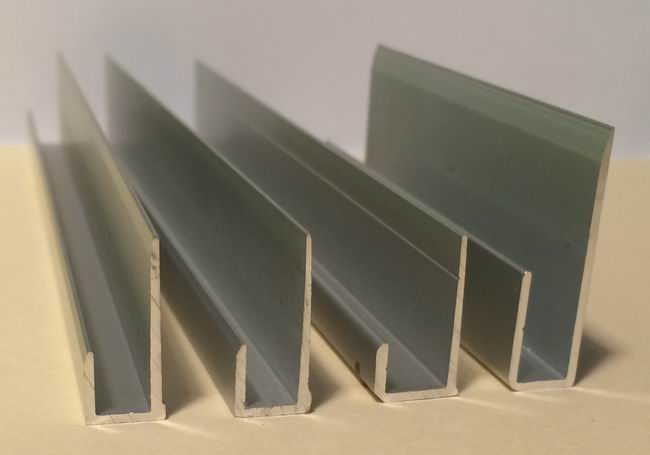

left to right IND-8,  1132 ,  J73906 new , J73906 discontinued



    Ind-8  best
Inventory
1132 J73906 new J73906 OLD
Long leg   .880" .880" .800" 1.27"
Short leg   .360" .360" .314" .630"
Inside   .250" .250" .315" .266"
Depth outside   .361" .361" .435" .356"
finish   satin satin or Black(extra$) satin Discontinued
not available
  See installation => Install J-trim
#128K  1/4" H-Bar can also be used with the Cork to go between pieces and can ship with cork


This 196 tray with 1/4" grove can make a simple tray for tack/cork boards
it ships from same warehouse as 1132



1132 satin 1132 Bronze Ind-8 = 1132 J73906-J-Trim

196 Tray
Availability      1day fob Ohio 1day fob Ohio due in 4/1/15 Now   1-2 Days
Length   24' lengths
can be cut
24' lengths
 can be cut
8, 12, 16
can be cut
12 ft only 16' can be cut
Finish Satin Anodized Aluminum Bronze anodized Satin Anodized
Aluminum
Satin Anodized
Aluminum
Satin Anodized Aluminum
Price per ft small order $1.96 call $1.02 $3.00 $2.51
weight .074 lbs / ft .074 lbs / ft .074 lbs / ft .074  lbs / ft .209 #/ft
Minimum order       12 ft
made as 24 ft pieces 24'4" pieces 8'1"   $8.25
 12'2"  $12.41
 16'4"   $16.66
8' at $24
12' at $36

colors       N/A
Cut to Size yes yes yes only as 8' and 12 ft
pictures
back long leg length .854" 854" .854" 13/16 = .813  7/2011
Front short  leg .365" 365" .365" 5/16" =.313  7/2011
inside width .241" .252" .241" .266"

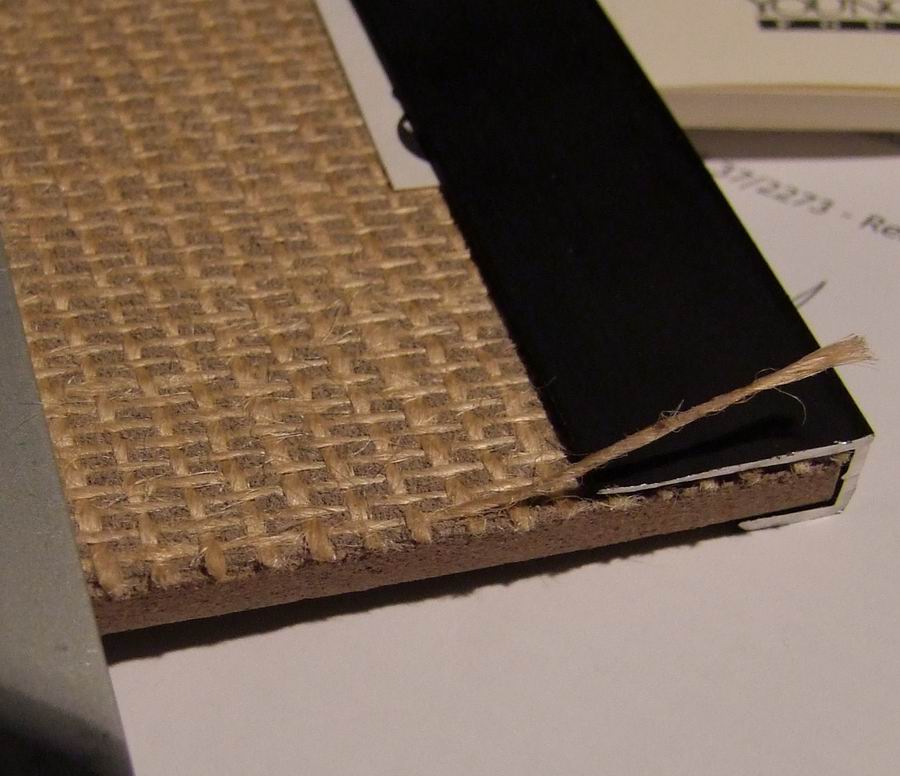

Back of cork showing jute backing with black 1132






Ind-8

Old  J73906  above No longer available

Call (860)632-2026 for a Firm quote    One page Sheet with all info  => Forbo Cork

Remember Pricing on web is List and does not include resale and volume discounts   2/20/2015
