Mounting OAF Frame

 * Back To *

Home
Standard Sizes
also see Ohio Frame
OAF Non-Mag

COAF frame Size Comes with at no charge Optional
9x12 D-Rings L-Brackets $2 set of 4
12x18 D-Rings L-Brackets $2 set of 4
18x24 D-Rings L-Brackets $2 set of 4
20x30 D-Rings L-Brackets $2 set of 4
24x24 D-Rings L-Brackets $2 set of 4
24x36 D-Rings L-Brackets $2 set of 4
24x48 and larger Four L-brackets none use L-brackets
36x48 and larger Four L-brackets none use L-brackets
48x60 and 72 and 96 Six L-brackets

1.   D-Rings (included but not fully secure by themselves) Ohio and CT aluminum frames are basically the same except Ohio only has a plastic tray option and the CT frame has an aluminum tray option.    Both come with D-rings (photo below) which are not a sufficient mounting for dry erase usage.   If you use the D-rings you need to add double backed tape, Velcro, adhesive or item 2 and 3 below to make it very secure.    A board just hanging by the d-rings without additional security will be able to be knocked off and harm some ones foot.  Please have a discussion with maintenance on how you will mount the boards.
or look at the EZ-hang if a secure built in hidden method is required.     Evan a Small 18" x 24"  I would not rely on just D-Rings but add a lot of Velcro.   On larger than 18x24 I would go to  2) screws or 3) angle brackets.



2.    Self Drilling Screws can be used and since the Ohio Aluminum frame is 1/2" screws can be drilled right thru the frame and not even touch the wall. see picture below.   This is a very popular option and is very secure and fast

3. Our L-Bracket shown below are mounted to wall and then screwed into the side of the frame.
They are nice and secure and are almost invisible Especially is used on the top and bottom rathner than the sides.



4.  If invisible mounting is critical to your look then look at our aluminum EZ-Hang

    See Self Drilling Ohio Frame
Installation of  L-Bracket
OHIO Aluminum Framed boards are MarkaSteel backed with 1/4" hardboard.
 Trim is 1/4" thick with two 1/2" legs P/N A2180

Optional  Angle bracket for Mounting $.50 each  will need 4 per board

Screw to go into frame not supplied at present 6/15/09

SHOULD YOU HAVE ANY QUESTIONS, DO NOT HESITATE TO CONTACT US.

1. ESTABLISH A LOCATION WHERE BOARD IS TO BE MOUNTED.

2. DETERMINE HEIGHT OFF FLOOR TO BOTTOM OF BOARD. ADD 2 3/8", PUT LEVEL LINE ON WALL AT THAT HEIGHT. MAKE LINE SAME LENGTH AS BOARD. (i.e. 4', 6', 8' etc. wide) MEASURE UP 43 V2" FROM THE LINE YOU PUT ON THE WALL. (IF INSTALLING A 5' BOARD MEASURE UP 55 1/2") THEN MAKE ANOTHER LINE LIKE THE FIRST.

3. LOCATE VERTICAL STUDS IN THE WALL. STUDS ARE NORMALLY SPACED 16" OR 24" ON CENTER.

4. SECURE SCREW THROUGH LONG END OF MOUNTING CLIPS INTO STUD, ALIGNING TOP OF CLIP TO LEVEL LINE. USUAL PLACEMENT OF MOUNTING CLAPS IS ONE EVERY OTHER STUD-32" ON-CENTER.  RECOMMENDED SCREW SIZE IS #10 X 2" IN LENGTH. NOTE: IF MOUNTING ON BRICK, PLASTER OR CONCRETE WALL, INSTALL PLASTIC OR METAL ANCHORS AS REQUIRED INTO WALL. SCREWS AND ANCHORS CAN BE OBTAINED AT ANY HARDWARE OUTLET.

5. FASTEN 5/8" SELF-TAPPING SCREWS  THROUGH V2" EDGE OF BOTTOM CLIPS INTO BOTTOM. TAP TOP MOUNTING CLIP DOWN FLUSH WITH TOP ALUMINUM CHANNEL OF BOARD. ATTACH 5/8" SELF TAPPING SCREWS  THROUGH 'A" EDGE OF TOP CLIPS INTO TOP CHANNEL OF BOARD.







1/4 thick framing hook style no brackets or screws provided -  just two hooks at top of board



See Optional  Angle bracket for Mounting $.50 each  will need 4 per board



L-Bracket Mounting
use #6 by 1/4 sheet metal screws for side mount into frame
the need a 7/64" pilot hole - we include screws w/ L-bracket
screws can be bought at Mcmaster 92470A144






Productions Pictures

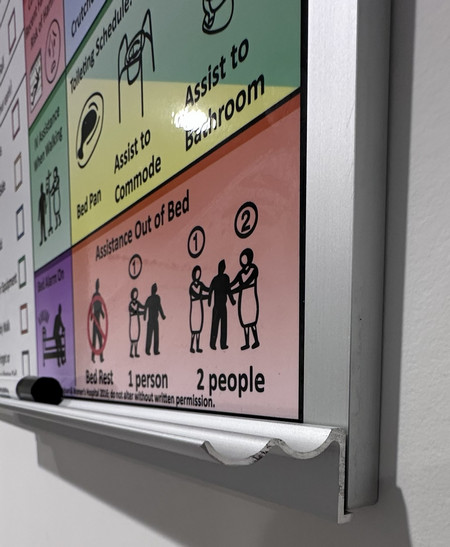

The plastic tray is very nice and clips on with no tools
