Snap-on-trim

Snap-on Trim
These three H-bars are made by different dies but are interchangeable for all intents and purposes
** shipping of 8 ft pieces will incur UPS oversize charges - discuss with Jen x 116 **

Snap-on Trim	IND-6	#489 - E	MAT01-01 R
Price per ft	$1.40	$1.96	$3.88
Stocked Lengths	8' = $11.20 6 clips 10' = $14.00 7 clips 12' = $16.80 9 clips + $8 cut custom size	25 ft min buy Add cutting cost	4' , 8' 12' pre cut + $8 cut
Clips to mount to wall	$.60 order separately need 1 per 16" PN: Clips-489R	$.60 order separately need 1 per 16" PN: Clips-489R	Included 1 per 16" extras at $.50 each
FOB Point	45241 Ohio	44240 Ohio	17756 PA
Weight per ft	.185 lbs	.185 lbs	.185 lbs
Box trays that ship from same location all together	IND-4	439	MACT1-01
Stock	Extensive	Extensive	Extensive
IND-6, 489 or MAT01 can be used with any style tray, they all use the same wall clip. all are anodized aluminum

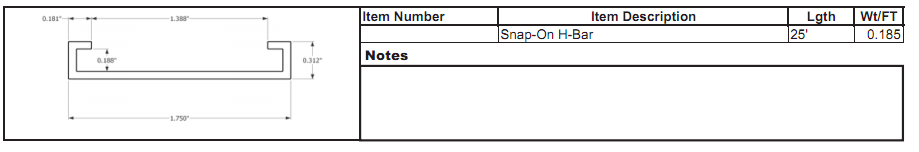

All 3 Snap-on trims above are 1.75" x .31"
Picture shows 489R clip in IND-6

also see our J-Cap IND-9

also see Box Trays

updated 2/8/2016
