Wood Frames and Alum
Dimesnions

 * Back To *
Home



stain  Colors

Alternate Thick Plastic looks more substantial than our newer thin frame

Pricing is can sometimes change on larger quantities depending if we go over or under nominal size and if box fits or not.

Let us do quote for large orders and specific on overall size requirement!!!!

There is No Marker Tray on these boards unless noted if needed see Trays

Standard wood and finish are
** White Oak (no Stain) with an Oil Finish **

Next option no oil or stain with a semi-gloss poly sealer

next option is MinWax stain with a semi-gloss poly sealer

last option is maple wood with poly finish

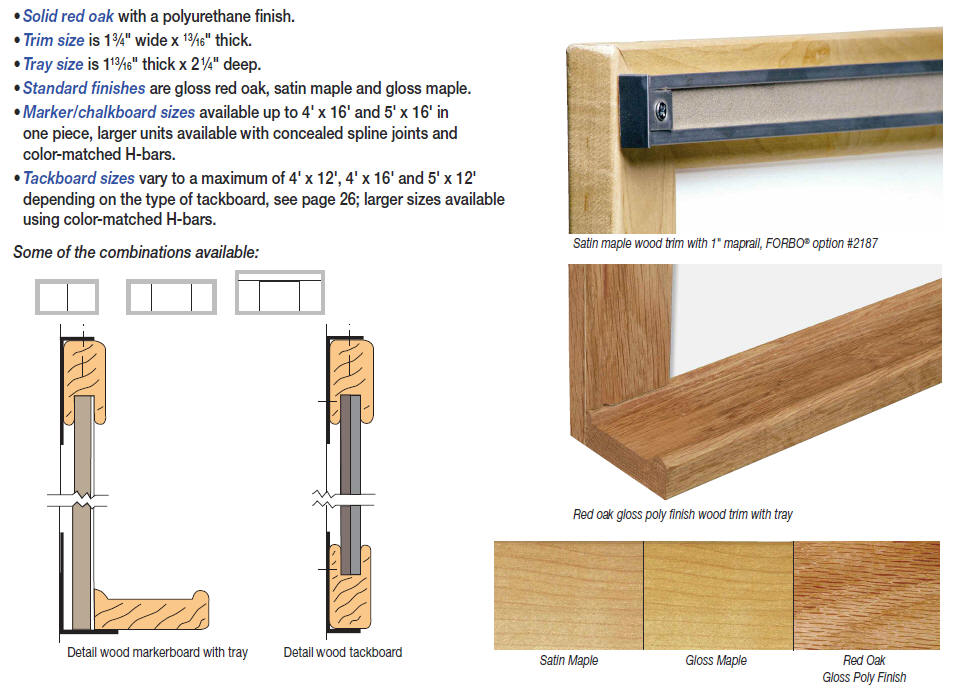

X SECTION OF FRAME DIMENSIONS
Frame type board size Backing
INCH
thick		 face
of trim		 Tray
sticks OUT
FROM
Face of
board		 Board
Thickness
from wall
sticks out		 trim covers
this much
of face
ON EACH
EDGE		 tray covers-
on tray side		 GROWTH
vertical
Height
Overall		 GROWTH
Horizontal
width
Overall
Wood 3' x 4' and smaller 1/4" 1" 1-3/4" .81" 1/2" 13/16"



 1/2"-1" 1.5" width
Wood 4' by 6' and larger 1/2" 1-3/4" 1-3/4" 5/16" 5/8" 13/16"



 1-1/8"
to 1-1/4		 2.25" - 2.5"
Plastic up to
24" x 36"
 		 3/16"   N/A .300 1/4" no tray 1/8" 1/8"
Plastic 36 x 48
and over		 1/2"   N/A .600 3/8" no tray 1/8" 1/8"
Aluminum - CA all 1/2" Tray
Permanent		 3" 11/16" 3/4" 1" 1/4"-3/8" 1/4"-3/8"
Aluminum - CT 4x6 max 1/4" Tray
Permanent		 1-1/4" 3/8" 3/4" same 3/4" 1/4"-3/8" 1/4"-3/8"
Alum OHIO


4x6 max

1/4"

Tray
Removable

Plastic 1-3/4"

3/8"

1/2"

 9/16" 1/4" 1/4"

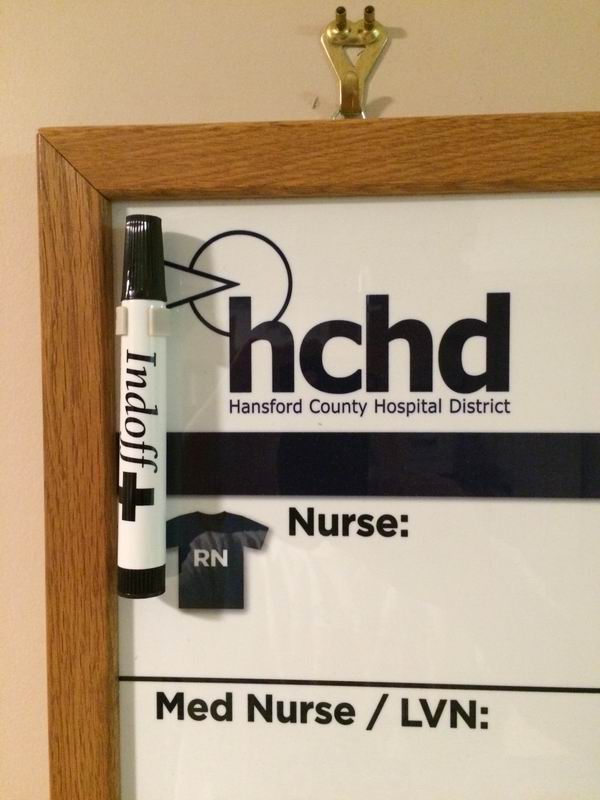

Specifically Wood Frame Issues Below

Wood frames if used with our standard size blanks grow in overall size.     Unless it is  specifically specified your boards overall dimensions will be oversize.

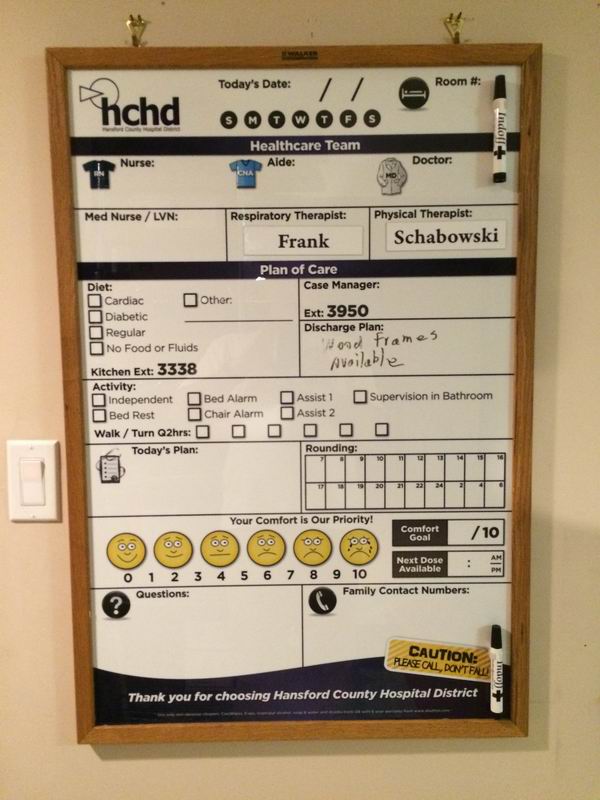

For a large order where you need to use our standard boxes we will have to shear skins down so when framed they are the nominal size.  This is not an issue with bulk packed boards to hospitals.


Remember Pricing on web is List and does not include resale and volume discounts   5/01/08
