NEWEST Product  Versa 3   Our PSA Version
See more styles and information below

Egan Site for Versaboard using EVS

Egan Site for Markerboards available with EVS

Egan Site for EganWall   Add 6% to prices effective 1/01/08

Home to    EganWall






EVS - Egan Visual Surface is a great advance in dry erase surfaces that not only clean easily but are excellent to project on.   Developed for the Electronic TeamBoard the surface is now available in many Egan products along with a roll material that can be put up like wallpaper.

Call For Pricing -This is the Best Projectable Surface but we have special Pricing Especially on big jobs
new EVS laminated to a backing to allow field installation

EganWall is composed of two products EVS EWW and EVSPRO  EWP an

available as EganWall in 48" or 54" width in 1' to 200' long   cut tolerance of  -0" +2"

See installation instructions of the   Eganwall installation      EganWall Install-Floor to ceiling-blackboard

Install EganWall            Accessorize Egan Wall        Egan Clean

1 ft minimum is the minimum length of Material that can be ordered.
Additional cuts at $20

width type/ gloss List price per linear FT Box Charge per order
independent of Length
This includes the 1st cut
EWW54 54" Regular 35 $75.90   $50
EWP54 54" Projectable 25 $75.90   $50
EWW48 48" Regular  35 $75.90   $50
EWP48 48" Projectable   25 $75.90   $50

Volume Price Breaks at
71-199' of 15%
200'-349' of 20%
and lastly at 350' take off  28%

EganWall is Flexible, and Versatile!

Use EganWall to re-surface existing chalkboards, EganWall is robust enough to handle almost any surfacing application. It's flexibility even allows it to wrap around columns!

Egan's exclusive SmoothMount lamination technology makes EganWall a thick, durable material, substantial enough to install smoothly over most wall situations. Even small imperfections are reduced when resurfaced with EganWall.

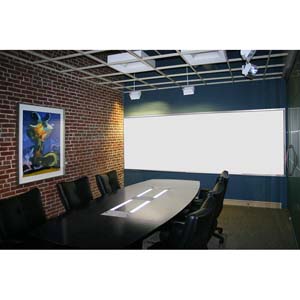

EganWall is suitable in a wide variety of applications including adhesion to existing walls, columns or other architectural detailing where dry-erase notation or projection is required. EganWall can be applied directly over many outdated writing surfaces, including blackboards. EganWall has a substantial gluable backing with an incredibly flat and stable EVS™ surface, which creates a superior appearance unmatched in the visual communication industry.



High Quality EVS Dry-Erase Projection Surface

EWW (EVS Write) is a guaranteed-to-clean dry-erase markerboard, which provides for easy-erase with EganMarkers and tolerates the use of lower quality, office dry-erase markers.

EWP (EVS Projection) is a highly effective projection screen featuring comfortable viewing without dimming the lights. EWP performs well as a dry-erase surface as well. Low quality markers may be a bit stubborn to remove, but can be easily cleaned with an ammonia based cleaner such as Windex™. EVS is guaranteed-to-clean.

EganWall Installs Quickly and Easily



EganWall is available in a roll 54"h or 48"h to any length required, with optional trim to match the existing decor.

EganWall is designed to provide the highest quality dry-erase and projection surface available in a roll format. The SmoothMount lamination process assures that EganWall has an absolutely flat memory. For information about installation visit the Library.

EganWall is available on our with 10 day delivery.

EganWall 202 Components

EganWall 202 Lightweight Track Mount Markerboards and Tackboards are compatible when framed with EganSystem Track. EganWall 202 components easily lift off the EganSystem Track Trim kit.

With the optional Track Trim Kit EganWall becomes a presentation powerhouse. Track boards may slide to reveal or cover information and even flipped over for additional content. Add a data projector and imagine the possibilities.

.

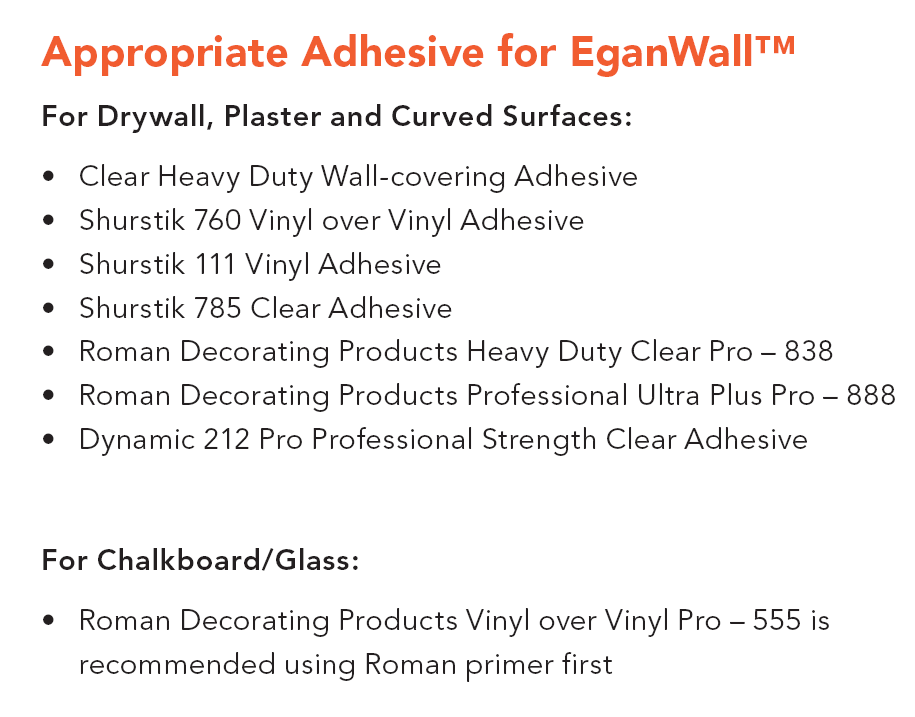

adhesive


Marker Recommendations
About Porcelain
The Egan writing surface is made up of 7mil thick porcelain which is fused to 28 gauge steel at 1500 degrees F. It is virtually non-porous, so no ink penetrates the surface. This means that if a pen other than an Egan marker is used, it will not cause any damage. The appropriate solvent will remove any ink. As an example, an alcohol based ink would be removed using an alcohol solution. Since the porcelain is fused to steel the surface will accept magnets for use in presentations.

Porcelain Specifications
Porcelain writing surface with a combined color, gloss and texture having L.A.B. readings of (L+OR-8), (A+OR-5) and (B+OR-5). Readings to be measured by a spectrometer.
These specs (developed by Kerr Industrial Application Center, a Div. of N.A.S.A.) are a dissection of the New Egan color and exceed any color or gloss presently on the market.

Competitive Advantage
Some other writing surfaces available on the market consist of epoxy or plastic on steel. This material is baked at a much lower temperature and remains porous. Over a period of time the ink penetrates the surface and it can become permanently stained in a relatively short time. Egan Visual offers a lifetime guarantee for the proper cleaning of the porcelain surface. We are the only manufacturer to do so.

Porcelain Maintenance
The porcelain material is incredibly consistent. Unless a film is allowed to build up, simple "Egan Cleaner" is all that will ever be required to maintain your Eganboard. If a board is not erasing well the following should be done. First, it should be cleaned with "Egan Cleaner". Particularly stubborn stains can be safely removed using one of the new "liquid abrasives" such as CLOROX "SOFT SCRUB" promoted as a non-scratch cleaner. The use of liquid abrasive must be followed by a thorough cleaning with "Egan Cleaner". Do not use commercial "white board" cleaners. They leave a film on the surface and are counter productive. The surface does require cleaning with regular use.Occasionally we receive a report of a small black spot on the porcelain surface of a markerboard. This is the result of the aluminum mounting bracket coming into contact with the porcelain finish when the product is being unpacked. This problem only occurs on aluminum framed boards. It is easily corrected by applying a small amount of powder abrasive "AJAX" with your finger tip and gently rub the surface. Follow this procedure with a cleaning of Egan Cleaner.

Recommendations
For best results it is recommended that only Egan Markers be used. If the ink is a faded color the markers should be replaced. It is important that the markers be tightly capped and stored horizontally when not in use. If left open their life span will be substantially reduced, if not terminated.
