Wiserail Maprail


MAPRAIL
Index

Extrusions



  Other MarkaWall Trim
2/1/09

All Extrusions

Wiserail

Wiserail-Length (Feet) Total Price Per Piece Price Per Foot
1 $25.82 $25.68
2 $28.56 $14.28
3 $31.30 $10.43
4 $34.04 $8.51
5 $36.76 $7.35
6 $39.50 $6.58
7 $42.24 $6.03
8 $44.98 $5.62
9 $47.72 $5.30
10 $50.46 $5.04
11 $53.20 $4.83
12 $55.94 $4.66
13 $58.68 $4.51
14 $61.42 $4.38
15 $64.16 $4.27

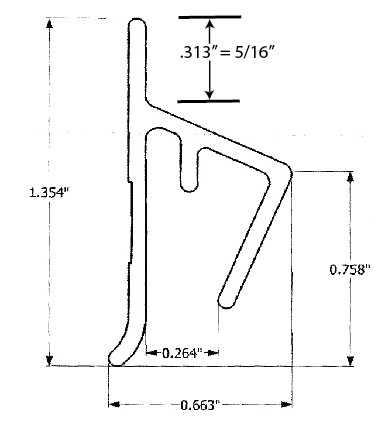

The extrusion is aluminum but the tubular pieces that hold the paper are plastic.   At bottom of page are extrusion only dimensions.
There are no mounting brackets or end caps available.
Drill and Screw thru 5/16" top flange.
If need a more finished end see Grip-A-Strip
Maximum paper thickness .069"

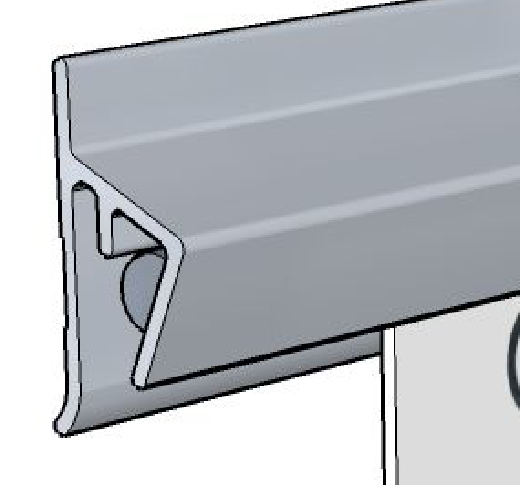

plastic insert that holds paper is shown in pictures directly below


updated 10/7/2013
